E63 645Ci N62 Coupe / Heater And Air Conditioning/ Coolant Lines
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

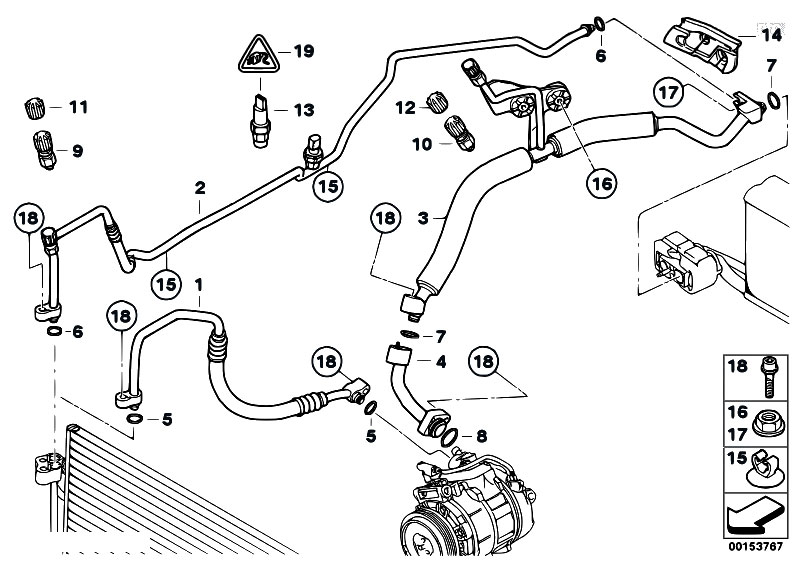

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 64536982865 | Pressure hose, compressor-condenser | 0.219 kg | 137.93 €137.93 $ | ||||
| 2 | 64536918240 | Pressure hose,condenser,evaporator | 0.250 kg | 162.19 €162.19 $ | ||||
| 3 | 64536982869 | Suction pipe | 0.710 kg | 175.41 €175.41 $ | ||||
| 4 | 64536914574 | Adapter for suction pipe | 0.110 kg | 101.06 €101.06 $ | ||||
| 5 | 64508375741 | Gasket ring | D=10,8 MM | 0.000 kg | 3.60 €3.60 $ | |||
| 6 | 64508374959 | Gasket ring | 9,5X2,5 | 0.000 kg | 7.76 €7.76 $ | |||
| 7 | 64538375742 | Gasket ring | D=13,7 MM | 0.000 kg | 8.83 €8.83 $ | |||
| 8 | 64506909894 | Gasket ring | 23X2,5 | 0.000 kg | 2.57 €2.57 $ | |||
| 9 | 64536940461 | Valve | R134A. | 0.020 kg | 9.81 €9.81 $ | |||
| 9 | 64509177577 | Valve | R134A. | 0.020 kg | 12.60 €12.60 $ | |||
| 10 | 64536940460 | Valve | R134A | 0.013 kg | 9.81 €9.81 $ | |||
| 10 | 64509177579 | Valve | R134A | 0.010 kg | 12.60 €12.60 $ | |||
| 11 | 64538390638 | Cap | R134A | 0.000 kg | 2.35 €2.35 $ | |||
| 12 | 64538390633 | Cap | R134A | 0.003 kg | 2.51 €2.51 $ | |||
| 12 | 64538387437 | Cap | SAUG | 0.000 kg | 2.26 €2.26 $ | |||
| 13 | 64536909257 | Pressure sensor | 0.040 kg | 44.91 €44.91 $ | ||||
| 13 | 64539141957 | Pressure sensor | 0.040 kg | 47.47 €47.47 $ | ||||
| 14 | 64536915174 | Grommet, air cond. lines | 0.080 kg | 7.30 €7.30 $ | ||||
| 15 | 64536919700 | Pipe clip | D= 10MM | 0.001 kg | 2.66 €2.66 $ | |||
| 16 | 07129904859 | Hex nut | BM6-8-ZNS3 | 0.000 kg | 0.77 €0.77 $ | |||
| 17 | 07129904008 | Hex nut with plate | AM6-8-ZNS3 | 0.010 kg | 0.29 €0.29 $ | |||
| 17 | 07129904868 | Hex nut | M6 ZNS3 | 0.000 kg | 2.35 €2.35 $ | |||
| 18 | 07119903999 | Fillister head with washer | M8X30-Z1 | 0.020 kg | 0.49 €0.49 $ | |||
| 18 | 07119905720 | Fillister head with washer | M8X30-U1-ZNS3 | 0.020 kg | 0.71 €0.71 $ | |||
| 19 | 61138365348 | Universal socket housing uncoded | 3 POL. | 0.000 kg | 5.60 €5.60 $ |
