E87 120d M47N2 5 doors / Heater And Air Conditioning/ Coolant Lines
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

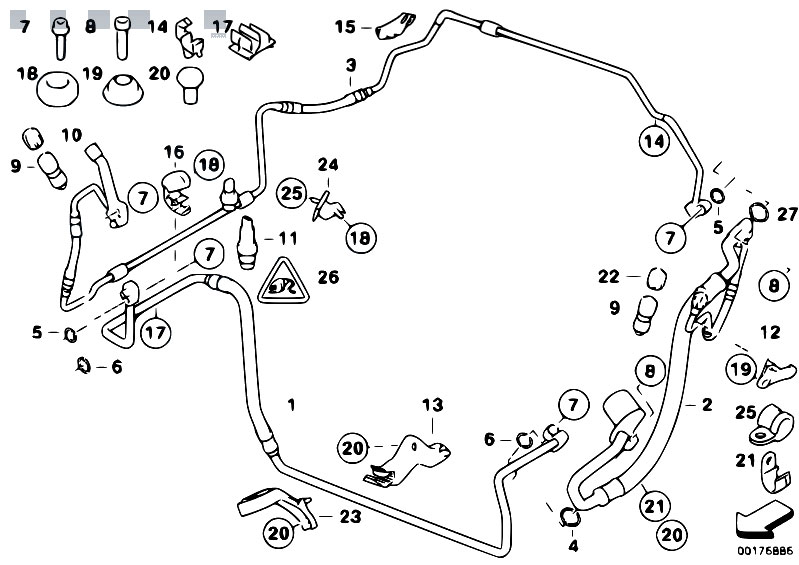

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 64536927537 | Pressure hose, compressor-condenser | 0.350 kg | 96.11 €96.11 $ | ||||
| 1 | 64536959992 | Pressure hose, compressor-condenser | 0.330 kg | 167.68 €167.68 $ | ||||
| 1 | 64534138517 | Pressure hose, compressor-condenser | 0.340 kg | 98.13 €98.13 $ | ||||
| 1 | 64536966288 | Pressure hose, compressor-condenser | 0.350 kg | 170.22 €170.22 $ | ||||
| 2 | 64536927538 | SUCTION PIPE EVAPORATOR-COMPRESSOR | 1.070 kg | 188.43 €188.43 $ | ||||
| 2 | 64526987992 | SUCTION PIPE EVAPORATOR-COMPRESSOR | 1.110 kg | 319.73 €319.73 $ | ||||
| 3 | 64536927541 | Pressure hose,condenser,evaporator | 0.420 kg | 194.63 €194.63 $ | ||||
| 3 | 64539151737 | Pressure hose,condenser,evaporator | 0.420 kg | 211.26 €211.26 $ | ||||
| 5 | 64508374959 | Gasket ring | 9,5X2,5 | 0.000 kg | 7.76 €7.76 $ | |||
| 6 | 64508375741 | Gasket ring | D=10,8 MM | 0.000 kg | 3.60 €3.60 $ | |||
| 7 | 07119903999 | Fillister head with washer | M8X30-Z1 | 0.020 kg | 0.49 €0.49 $ | |||
| 7 | 07119905720 | Fillister head with washer | M8X30-U1-ZNS3 | 0.020 kg | 0.71 €0.71 $ | |||
| 8 | 07119901024 | Fillister head screw | M8X25 | 0.010 kg | 0.27 €0.27 $ | |||
| 8 | 07119904102 | Fillister head screw | M8X25-8.8-ZNS3 | 0.014 kg | 0.63 €0.63 $ | |||
| 9 | 64536922944 | Valve | 0.000 kg | 4.07 €4.07 $ | ||||
| 10 | 64538390638 | Cap | R134A | 0.000 kg | 2.35 €2.35 $ | |||
| 11 | 64536909257 | Pressure sensor | 0.040 kg | 44.91 €44.91 $ | ||||
| 11 | 64539141957 | Pressure sensor | 0.040 kg | 47.47 €47.47 $ | ||||
| 12 | 64536946346 | Filler connection bracket | 0.010 kg | 15.00 €15.00 $ | ||||
| 13 | 64536928588 | BRACKET PRESSURE PIPE AIRCONDITIONER | 0.010 kg | 3.20 €3.20 $ | ||||
| 13 | 64534137673 | BRACKET PRESSURE PIPE AIRCONDITIONER | 0.010 kg | 9.41 €9.41 $ | ||||
| 13 | 64536956711 | BRACKET PRESSURE PIPE AIRCONDITIONER | 0.014 kg | 9.37 €9.37 $ | ||||
| 14 | 64538369549 | BRACKET PRESSURE PIPE AIRCONDITIONER | 0.000 kg | 4.69 €4.69 $ | ||||
| 15 | 64536939333 | BRACKET PRESSURE PIPE AIRCONDITIONER | 0.010 kg | 4.97 €4.97 $ | ||||
| 17 | 64536951634 | BRACKET PRESSURE PIPE AIRCONDITIONER | 0.000 kg | 2.80 €2.80 $ | ||||
| 18 | 07146982788 | LOCKNUT | M6 ZNT | 0.000 kg | 1.68 €1.68 $ | |||
| 18 | 41518195401 | LOCKNUT | M6 ZN | 0.000 kg | 0.35 €0.35 $ | |||
| 18 | 07146982788 | LOCKNUT | M6 ZNT | 0.000 kg | 1.68 €1.68 $ | |||
| 19 | 07146778500 | Self-locking hex nut | M6 | 0.000 kg | 1.82 €1.82 $ | |||
| 20 | 07119904105 | Fillister head screw | M6X16-8.8-ZNS3 | 0.010 kg | 0.40 €0.40 $ | |||
| 22 | 64538390633 | Cap | R134A | 0.003 kg | 2.51 €2.51 $ | |||
| 24 | 64534142035 | BRACKET PRESSURE PIPE AIRCONDITIONER | 0.034 kg | 16.99 €16.99 $ | ||||
| 25 | 12521270936 | Clamp | D=23/6,4 | 0.020 kg | 3.76 €3.76 $ | |||
| 26 | 61138365348 | Universal socket housing uncoded | 3 POL. | 0.000 kg | 5.60 €5.60 $ | |||
| 27 | 64538375742 | Gasket ring | D=13,7 MM | 0.000 kg | 8.83 €8.83 $ |
