E88 120d N47 Cabrio / Vehicle Trim/ Reinforcement Body
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

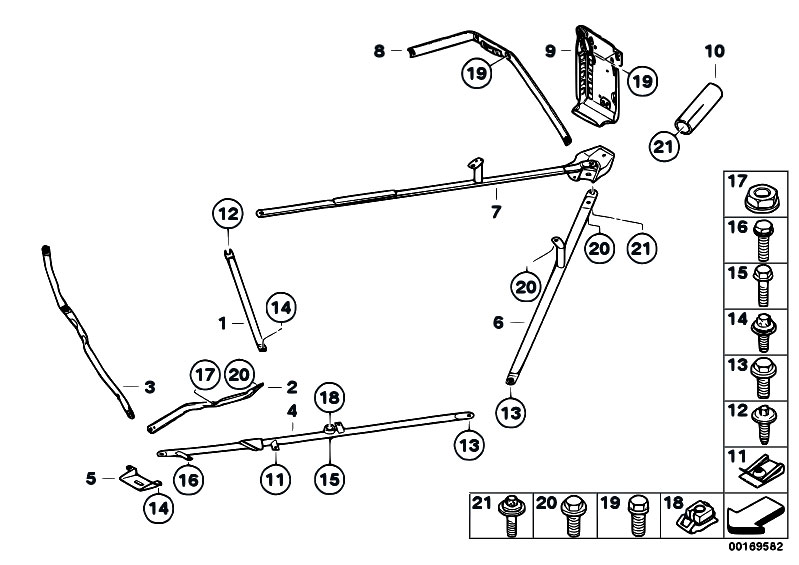

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 51617167643 | Spring dome strut, left | 0.720 kg | 39.18 €39.18 $ | ||||
| 1 | 51617167644 | Spring dome strut, right | 0.720 kg | 39.18 €39.18 $ | ||||
| 2 | 51617135650 | Diagonal rod, front, right | 1.020 kg | 30.52 €30.52 $ | ||||
| 2 | 51617135651 | Diagonal rod, front, left | 1.170 kg | 58.78 €58.78 $ | ||||
| 3 | 51717185140 | V-strut, front-axle carrier, right | 2.860 kg | 846.39 €846.39 $ | ||||
| 4 | 51717185139 | V-strut, front-axle carrier, left | 2.860 kg | 846.39 €846.39 $ | ||||
| 5 | 51617046337 | Protective skid | 0.430 kg | 8.62 €8.62 $ | ||||
| 6 | 51617175251 | LEFT PULL ROD | 2.990 kg | 66.57 €66.57 $ | ||||
| 7 | 51617175252 | PULL ROD RIGHT | 4.030 kg | 22.48 €22.48 $ | ||||
| 8 | 51617166358 | ROD | 1.240 kg | 72.11 €72.11 $ | ||||
| 9 | 51717187481 | Load protective plate, left | 2.270 kg | 68.55 €68.55 $ | ||||
| 9 | 51717187482 | Load protective plate, right | 2.270 kg | 68.55 €68.55 $ | ||||
| 10 | 51617210768 | Mass damper | 8.850 kg | 135.70 €135.70 $ | ||||
| 11 | 07147154447 | Sheet metal nut, self-locking | 5,5MM | 0.000 kg | 0.61 €0.61 $ | |||
| 12 | 07146954965 | ASA-Bolt with circlip | M12X1.5X39 | 0.070 kg | 5.35 €5.35 $ | |||
| 13 | 07147203503 | Hexagon screw with flange | M12X1,5X35-10.9 | 0.050 kg | 4.51 €4.51 $ | |||
| 14 | 07146963730 | Torx bolt | M10X16-10.9- | 0.030 kg | 2.34 €2.34 $ | |||
| 15 | 07119905147 | Hex Bolt with washer | M10X25-10.9ZNS3 | 0.030 kg | 1.09 €1.09 $ | |||
| 16 | 07119905502 | Hex Bolt | M12X30 | 0.043 kg | 2.13 €2.13 $ | |||
| 17 | 07119904670 | Flange nut | M10-10-ZNS3 | 0.010 kg | 0.63 €0.63 $ | |||
| 18 | 31116768715 | CAGE NUT | 0.020 kg | 4.74 €4.74 $ | ||||
| 19 | 07147076050 | Hex Bolt | M10X22 | 0.030 kg | 3.05 €3.05 $ | |||
| 20 | 07147203503 | Hexagon screw with flange | M12X1,5X35-10.9 | 0.050 kg | 4.51 €4.51 $ | |||
| 20 | 07147206354 | Hexagon screw with flange | M12X1,5X50-10.9 | 0.060 kg | 5.11 €5.11 $ | |||
| 21 | 07147145742 | Hex Bolt with washer | M10X40 | 0.050 kg | 4.43 €4.43 $ |
