E90 335d M57N2 Sedan / Heater And Air Conditioning/ Coolant Lines 2
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

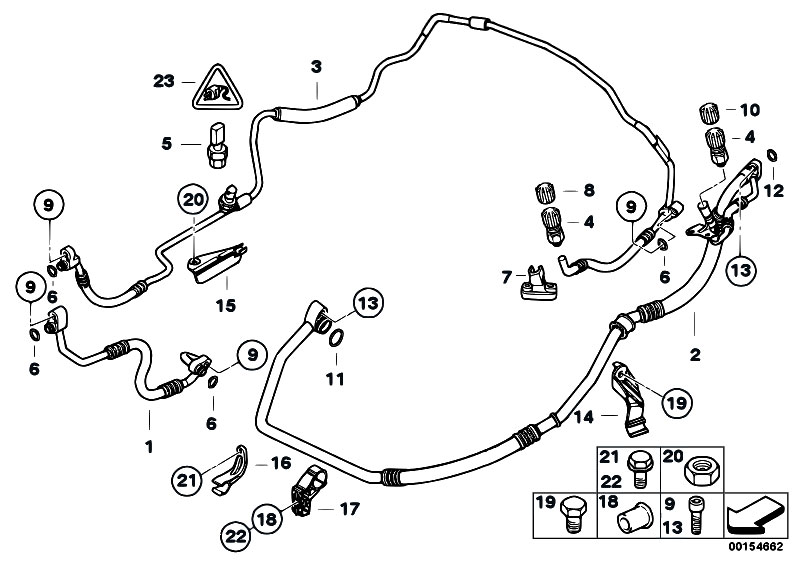

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 64506976790 | Pressure hose, compressor-condenser | 0.170 kg | 126.44 €126.44 $ | ||||
| 1 | 64509145002 | Pressure hose, compressor-condenser | 0.180 kg | 147.74 €147.74 $ | ||||
| 2 | 64506976791 | SUCTION PIPE EVAPORATOR-COMPRESSOR | 0.640 kg | 252.06 €252.06 $ | ||||
| 2 | 64509170114 | SUCTION PIPE EVAPORATOR-COMPRESSOR | 0.630 kg | 209.01 €209.01 $ | ||||
| 3 | 64506976795 | Pressure hose,condenser,evaporator | 0.490 kg | 302.22 €302.22 $ | ||||
| 3 | 64509151739 | Pressure hose,condenser,evaporator | 0.490 kg | 126.93 €126.93 $ | ||||
| 3 | 64509170113 | Pressure hose,condenser,evaporator | 0.440 kg | 220.89 €220.89 $ | ||||
| 4 | 64536922944 | Valve | 0.000 kg | 9.03 €9.03 $ | ||||
| 5 | 64536909257 | Pressure sensor | 0.040 kg | 46.79 €46.79 $ | ||||
| 5 | 64539141957 | Pressure sensor | 0.040 kg | 49.44 €49.44 $ | ||||
| 6 | 64508375741 | Gasket ring | D=10,8 MM | 0.000 kg | 3.74 €3.74 $ | |||
| 7 | 64536980664 | Pressure hose bracket | 0.040 kg | 17.12 €17.12 $ | ||||
| 8 | 64538387438 | Cap | DRUCK | 0.000 kg | 2.39 €2.39 $ | |||
| 9 | 07119903399 | Fillister head screw | M6X8-A2-70 | 0.003 kg | 3.31 €3.31 $ | |||
| 10 | 64538387437 | Cap | SAUG | 0.000 kg | 2.35 €2.35 $ | |||
| 11 | 64508363041 | Gasket ring | D=23 MM | 0.000 kg | 3.39 €3.39 $ | |||
| 12 | 64538375742 | Gasket ring | D=13,7 MM | 0.000 kg | 9.18 €9.18 $ | |||
| 13 | 07119901024 | Fillister head screw | M8X25 | 0.010 kg | 0.27 €0.27 $ | |||
| 13 | 07119904102 | Fillister head screw | M8X25-8.8-ZNS3 | 0.014 kg | 0.63 €0.63 $ | |||
| 14 | 64509117340 | BRACKET SUCTION PIPE AIRCONDITIONER | 0.040 kg | 31.82 €31.82 $ | ||||
| 15 | 64509113786 | Pressure hose bracket | 0.020 kg | 11.02 €11.02 $ | ||||
| 16 | 64536976792 | BRACKET SUCTION PIPE AIRCONDITIONER | 0.020 kg | 27.59 €27.59 $ | ||||
| 17 | 64536976793 | BRACKET SUCTION PIPE AIRCONDITIONER | 0.020 kg | 42.24 €42.24 $ | ||||
| 18 | 17227798686 | Spacer | D6 | 0.010 kg | 6.12 €6.12 $ | |||
| 19 | 88100390461 | Hex Bolt | M10X18 | 0.019 kg | 0.40 €0.40 $ | |||
| 19 | 07119902537 | Hex Bolt | M10X18 | 0.019 kg | 0.43 €0.43 $ | |||
| 19 | 07119904033 | Hex Bolt | M10X18-8.8-ZNS3 | 0.019 kg | 1.26 €1.26 $ | |||
| 20 | 07129904859 | Hex nut | BM6-8-ZNS3 | 0.000 kg | 0.77 €0.77 $ | |||
| 21 | 34211163951 | SELF-LOCKING HEX BOLT | M6X12 | 0.010 kg | 0.65 €0.65 $ | |||
| 21 | 07119904511 | Hex Bolt with washer | M6X12-U1 | 0.010 kg | 0.47 €0.47 $ | |||
| 22 | 07119903001 | Hex Bolt with washer | M6X35-U2-8.8 | 0.011 kg | 1.18 €1.18 $ | |||
| 23 | 61133333333 | Plug, see part info in 'ZI' column | 0.000 kg | 14.52 €14.52 $ |
