F02 730Ld N57 Sedan / Vehicle Trim/ Reinforcement Body
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

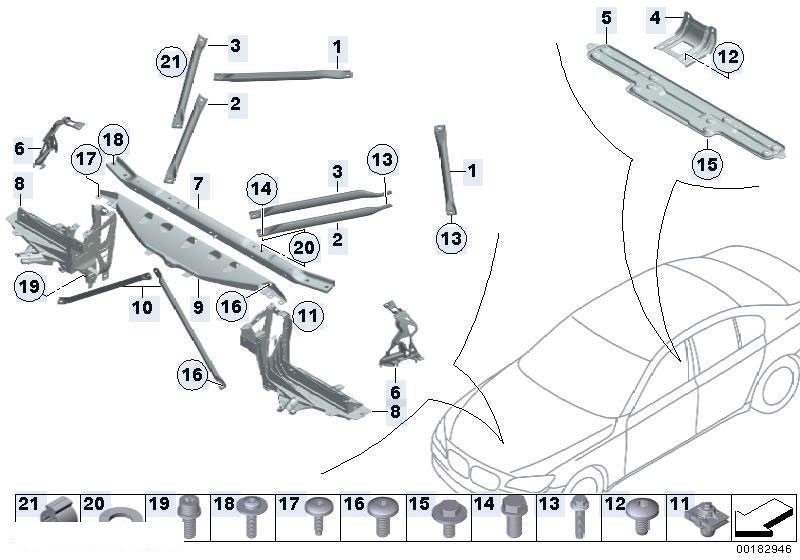

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 51717180315 | Cross-brace, rear left | 0.230 kg | 24.87 €24.87 $ | ||||
| 1 | 51717180316 | Cross-brace, rear right | 0.230 kg | 24.87 €24.87 $ | ||||
| 2 | 51717229297 | Cross-brace, front left | 0.240 kg | 20.22 €20.22 $ | ||||
| 2 | 51717229298 | Cross-brace, front right | 0.240 kg | 20.22 €20.22 $ | ||||
| 4 | 51717185011 | Support floor panel, rear | 0.430 kg | 14.96 €14.96 $ | ||||
| 5 | 51617209856 | Connecting member, rear tunnel | 2.070 kg | 86.49 €86.49 $ | ||||
| 6 | 51647046351 | Spacer, left | 0.030 kg | 29.57 €29.57 $ | ||||
| 6 | 51647046352 | Spacer, right | 0.070 kg | 29.57 €29.57 $ | ||||
| 7 | 51647183851 | Connection, top rear | 0.870 kg | 252.87 €252.87 $ | ||||
| 8 | 51647184159 | Support left | 1.570 kg | 226.08 €226.08 $ | ||||
| 8 | 51647184160 | Support right | 1.560 kg | 226.16 €226.16 $ | ||||
| 9 | 51647199417 | Connection, top front | 0.800 kg | 171.46 €171.46 $ | ||||
| 10 | 51647187095 | Support left | 0.120 kg | 25.61 €25.61 $ | ||||
| 10 | 51647187096 | Support right | 0.120 kg | 25.61 €25.61 $ | ||||
| 11 | 51647200439 | Adjustment element | 0.010 kg | 4.76 €4.76 $ | ||||
| 12 | 07147122216 | Fillister head screw | ISA M6X12 ZNNID | 0.010 kg | 0.32 €0.32 $ | |||
| 13 | 07147029829 | Hex Bolt | M10X47 | 0.040 kg | 4.53 €4.53 $ | |||
| 14 | 07119905147 | Hex Bolt with washer | M10X25-10.9ZNS3 | 0.030 kg | 1.09 €1.09 $ | |||
| 15 | 07119905529 | Hex Bolt with washer | M8X18-U1-8.8 | 0.010 kg | 0.71 €0.71 $ | |||
| 16 | 51249145721 | Torx-bolt with washer | ISA M8X20 | 0.020 kg | 0.87 €0.87 $ | |||
| 17 | 07147119148 | OVAL HEAD SCREW WITH WASHER | ISA M6X21 | 0.010 kg | 0.71 €0.71 $ | |||
| 18 | 07147204736 | Torx-bolt with washer | ISA M8X25 | 0.020 kg | 2.65 €2.65 $ | |||
| 19 | 07129903978 | Torx screw | M6X16MM ZNS3 | 0.010 kg | 0.74 €0.74 $ | |||
| 20 | 07119904201 | Washer | D=10MM | 0.003 kg | 1.72 €1.72 $ |
